Overview
The MKH HPL Mgo Fireproof Board is a high-performance, eco-friendly decorative wall and ceiling panel engineered for modern commercial and industrial interiors. By fusing premium High-Pressure Laminate (HPL) with a lab-verified Magnesium Oxide (MgO) core, this board delivers Class A1/B1 fire protection, exceptional impact resistance, and anti-bacterial properties in a single integrated solution. It is the ideal choice for projects with strict building code compliance and high aesthetic demands.
Key Features
- Class A1/B1 Fire Rated: Lab-verified non-combustible MgO core eliminates compliance risks in high-rise and commercial buildings.

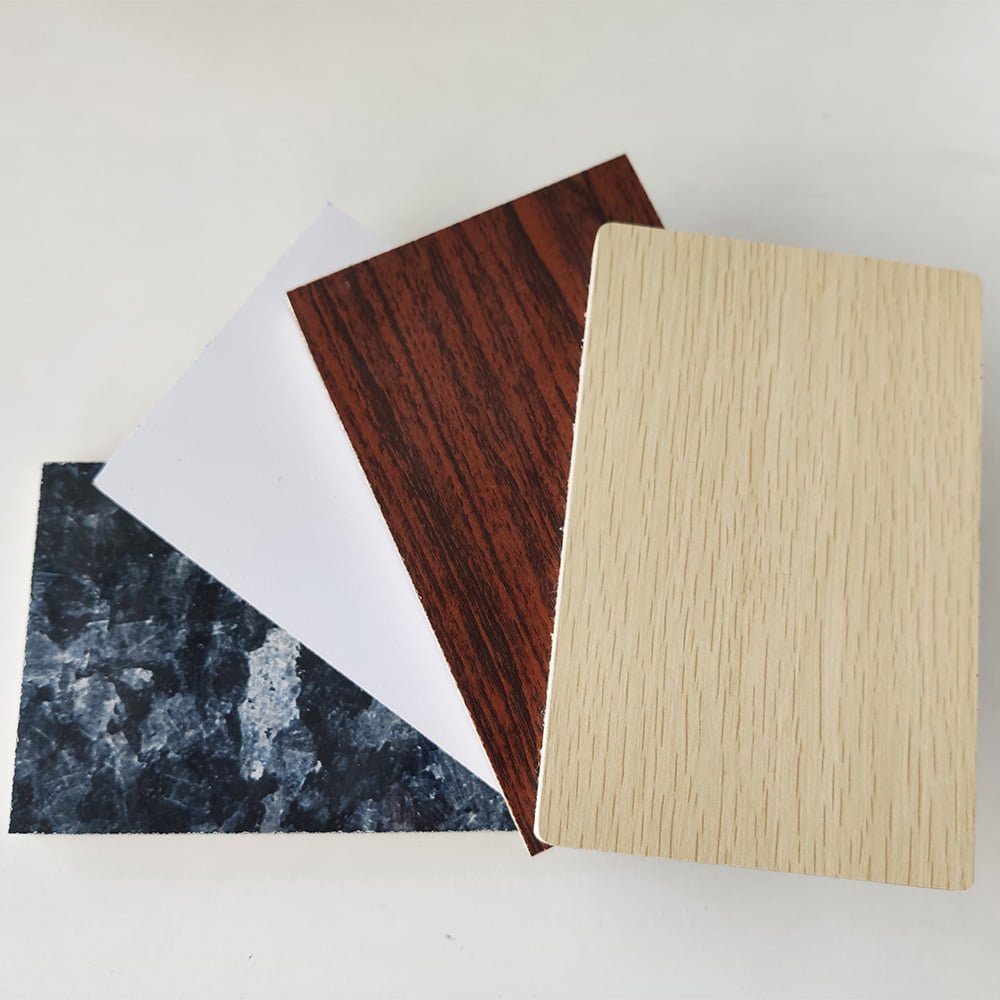

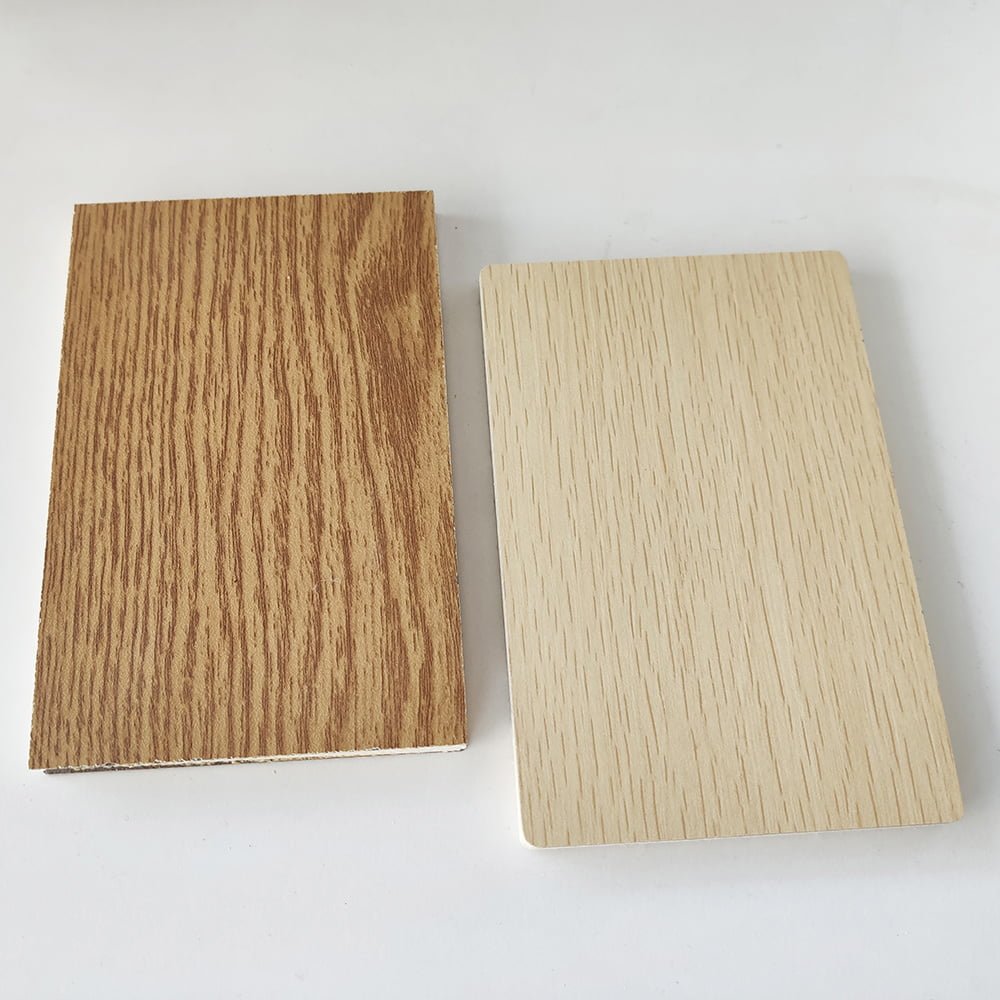

- Pre-finished Decorative Surface: Premium HPL overlay offers hundreds of colors/textures (wood grain, stone, solid) without requiring on-site painting.
- 100% Asbestos-Free & Eco-Friendly: Zero formaldehyde emissions, supporting LEED and green building certifications.
- Moisture & Mold Resistant: High-density composition prevents warping, swelling, or delamination in humid environments.
- High Impact & Scratch Resistance: Rigid HPL face withstands heavy daily wear, making it perfect for high-traffic public zones.
Technical Specifications
| Item | Specification / Data |
|---|---|
| Standard Dimensions | 1220 x 2440 mm / 1220 x 3050 mm (Custom sizes available) |
| Thickness Range | 3-25mm (HPL thickness: 0.5mm – 1.0mm) |
| Fire Rating Performance | Class A1 |
| Core Material | High-purity Magnesium Oxide (MgO), MgCl2/MgSO4, fiberglass mesh |
| Surface Finish | High-Pressure Laminate (HPL) – Matte, Glossy, Texture, Woodgrain |
| Density | Approx. 1.0 – 1.3 g/cm³ |
| Formaldehyde Emission | E0 Grade (≤ 0.5 mg/L) / Non-toxic |
| Moisture Absorption Rate | ≤ 10% (No deformation after prolonged water immersion) |
| Bending Strength | ≥ 15 MPa |
Applications
- Commercial Wall Systems: Interior wall cladding for hospitals, schools, hotels, airports, and shopping malls.
- Specialist Environments: Anti-static and anti-bacterial wall paneling for operating rooms and pharmaceutical plants.
- Furniture Cores: Fire-rated cabinet doors, partitions, and decorative furniture backings.
Installation & Fabrication Guidance
- Can be cut, routed, and drilled using standard carbide-tipped woodworking tools.
- For wall systems, we recommend using MKH aluminum profile clip systems or structural adhesive attachment.
- Ensure a 2-3mm expansion gap between boards during installation to accommodate structural movement.
- Store flat in a dry, ventilated warehouse; avoid direct exposure to rain or standing water before installation.
Package & Supply Chain Services
- Standard Packaging: Strong wooden pallets with edge protectors and PE wrap for safe ocean freight.
- Flexible MOQ: Small-batch customization available for multi-color engineering projects.
- Technical Support: Full documentation package including Material Safety Data Sheets (MSDS) and Test Reports.
