Overview

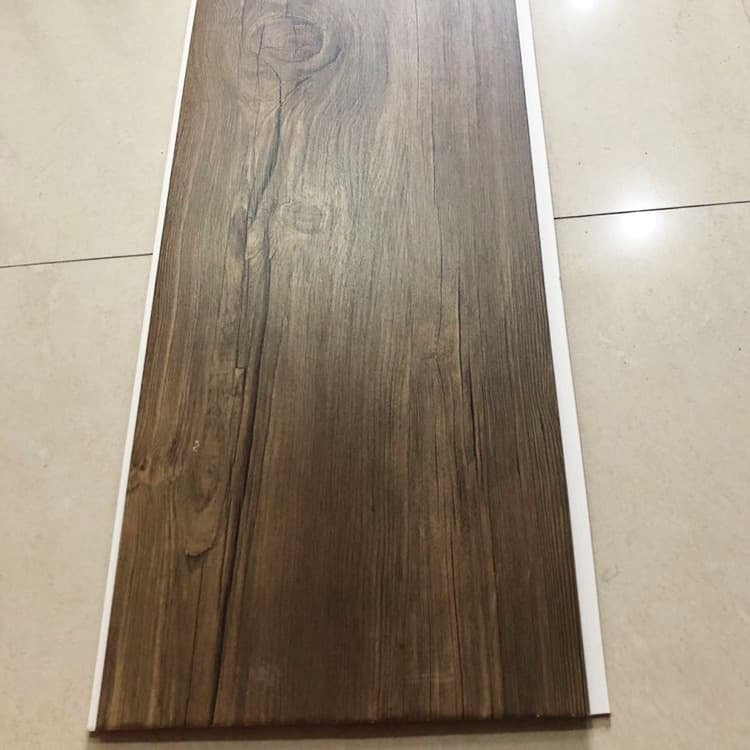

The premium Wood Laminated PVC Ceiling Panel is engineered to provide an eco-friendly, aesthetically superior alternative to traditional timber lining and heavy gypsum boards.

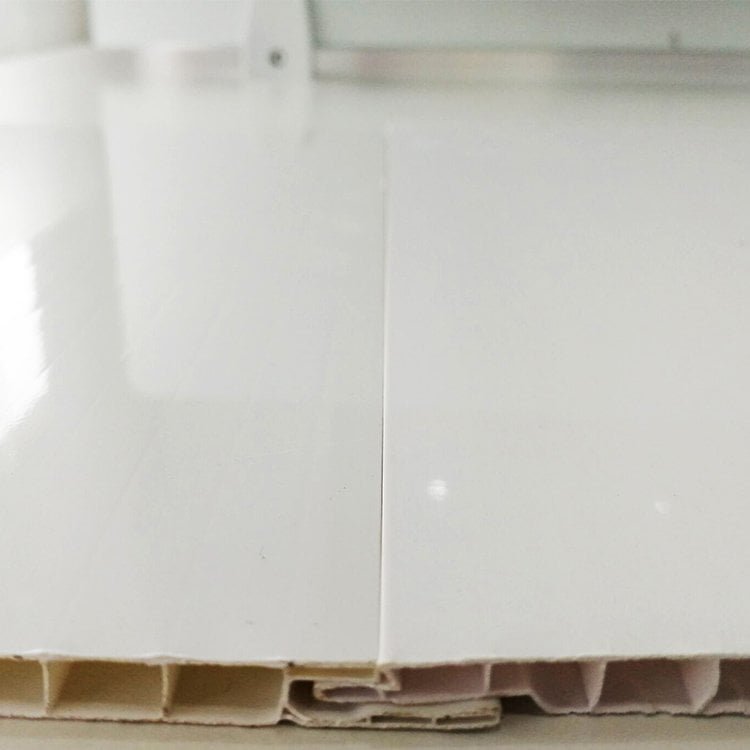

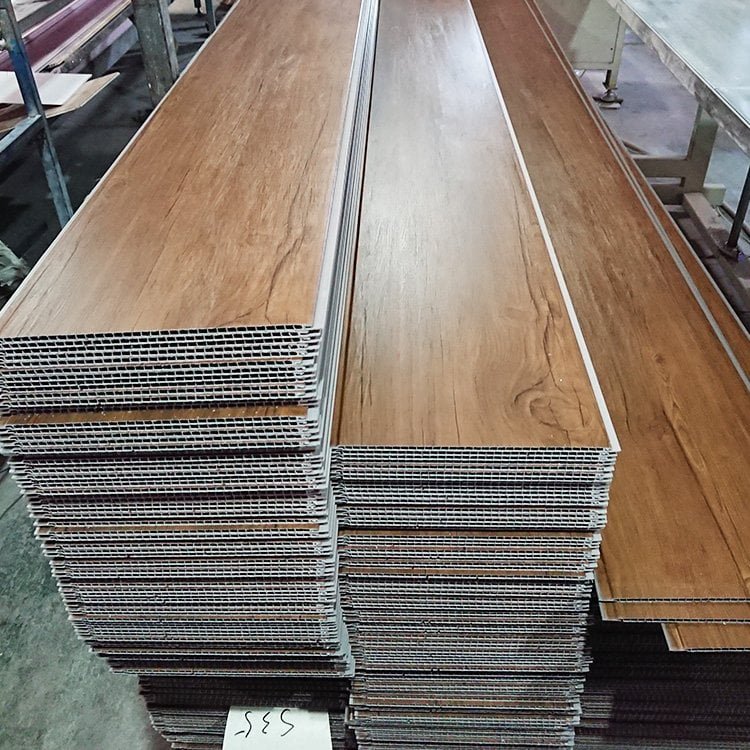

Constructed with a lightweight, multi-cell hollow honeycomb interior, this panel integrates advanced surface lamination technology, bonding an ultra-realistic, multi-textured wood-grain foil directly to the rigid PVC substrate.
The system features four standard available thicknesses—6.0 mm, 7.5 mm, 8.0 mm, and 9.0 mm—covering lightweight residential renovations to high-traffic commercial building specifications.
Engineered with an precision interlocking tongue-and-groove joint profile on both lateral faces, it ensures a seamless, flush connection that eliminates visible fastening gaps across a coverage width range of 200–300 mm.
Key Features
- Precision Wood-Grain Lamination: Multi-layer polymer foil provides authentic timber textures with superior scratch resistance compared to basic printed finishes.
- 100% Waterproof : Complete defense against moisture absorption, zero risk of warping, rotting, or mold propagation in high-humidity zones.
- Class B1 Flame Retardant: Formulated with specialized self-extinguishing polymer agents, complying with stringent global commercial building safety regulations.
- Form-Stable Tongue & Groove Profile: Engineered interlocking margins facilitate fast, tool-friendly installation onto metal or wood batten frameworks.
- Zero-Formaldehyde Composition: Made from high-grade PVC resin and natural calcium carbonate eco-blends, ensuring immediate indoor air safety post-installation.
Specifications
| Item | Specification |
|---|---|
| Standard Widths | 200 mm, 250 mm, 300 mm (Custom architectural profiles available) |
| Panel Thickness | 5mm, 6.0 mm, 7.5 mm, 8.0 mm, 9.0 mm |
| Standard Lengths | 2.90 m, 3.00 m, 5.80 m, 5.95 m (Tailored optimized for 20ft/40ft container loading) |
| PVC Resin Content | 40% – 60% balanced formulation (Varies based on project mechanical load demands) |
| Substrate Material | High-molecular PVC polymer resin & Calcium Carbonate eco-composites |
| Surface Technology | Thermal bonding anti-UV laminated film (Matte timber touch / Textured wood grain) |
| Weight Density | Approx. 2.0 – 3.5kg/m² (Subject to specific wall thickness and compound ratio) |
| Joint System | Flush interlocking tongue and groove (V-groove / Seamless options) |
Recommended Capacity & Design Selections
- Lightweight Residential (6.0–7.5mm): Optimized for standard domestic bathroom, residential kitchen, and interior balcony ceiling linings.
- Heavy-Duty Commercial (8.0–9.0mm): Enhanced rigid wall thickness; highly recommended for commercial offices, hotel lobbies, and public corridors.
- Deep-Textured Lamination: Designed for high-end hospitality architectural concepts aiming for a natural biophilic timber look without the structural weight.
- High-PVC Formulation (55%+): Recommended for semi-outdoor structural eaves and tropical coastal regions requiring premium resistance to atmospheric humidity.
- For accurate custom batching, specify required panel width (e.g., 200mm / 300mm) and explicit foil color codes matching project mood boards.
Notes: Real-world mechanical performance and aesthetic longevity are influenced by structural framing alignment and ambient UV radiation. For full outdoor exposures or high-heat environments, consult our technical material lab to adapt UV-stabilizer adjustments. Always run mock-up visual tests with actual material samples.
Technical Details & Installation Safety
- Acclimatize panels horizontally on a flat, clean surface in the destination space for 24 hours prior to permanent fixation.
- Secure the metal furring channels or structural wood battens at a strict maximum parallel grid spacing of 30–40 cm.
- Ensure the initial starter trim is completely leveled using a digital laser tool; affix tongue margins using counter-sunk screws or structural staples.
- Maintain a uniform 2–3 mm structural expansion clearance at all perimeter boundary edges to accommodate thermal expansion cycles.
- Operate high-speed fine-tooth mechanical circular saws or fine-tooth handsaws carefully; always wear protective eyewear and particulate dust masks.
- Do not install laminated panels in immediate, unshielded proximity to high-output thermal elements, open combustion zones, or localized steam vents.
Applications
- Premium Hospitality & Commercial: Eco-conscious luxury hotel lobbies, corporate offices, upscale restaurants, and modern retail environments.
- High-Humidity Interiors: Luxury residential bathrooms, commercial kitchens, commercial laundry facilities, and indoor spa areas.
- Institutional & Public: Educational centers, clinics, civic buildings, and transit lounges demanding aesthetic warmth combined with sterile, low-maintenance surfaces.
Package & Accessories

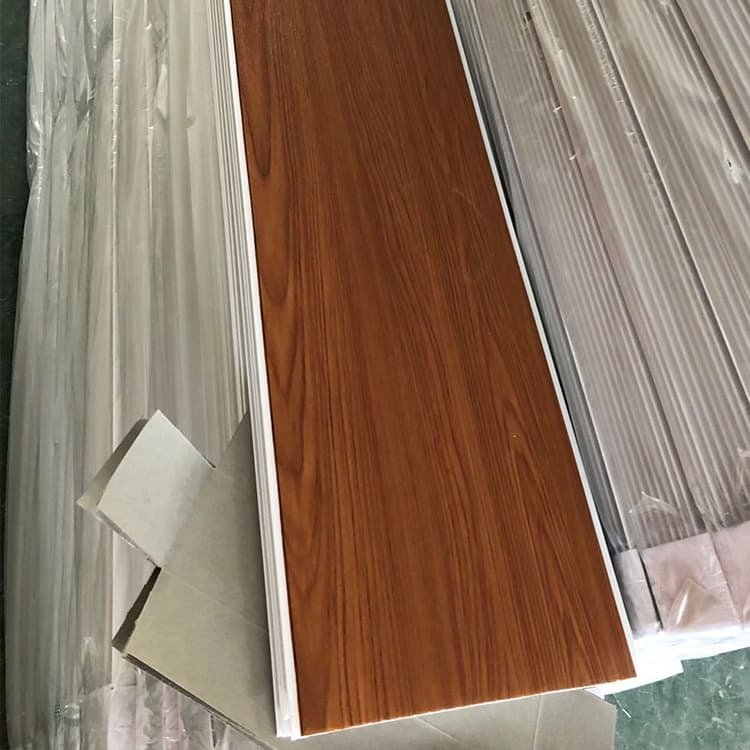

- Standard Freight Packaging: 10 pieces packed securely in protective PE shrink bundling or reinforced corrugated export boxes (TBD based on maritime shipping route).
- Integrated Profiles: Color-matched PVC Top Jointer, H-Seam Profile, Internal/External Wall Corner pieces, and perimeter F-Trims (Supplied synchronously upon order).
